► Features ( Amorphous distribution transformer core ) :

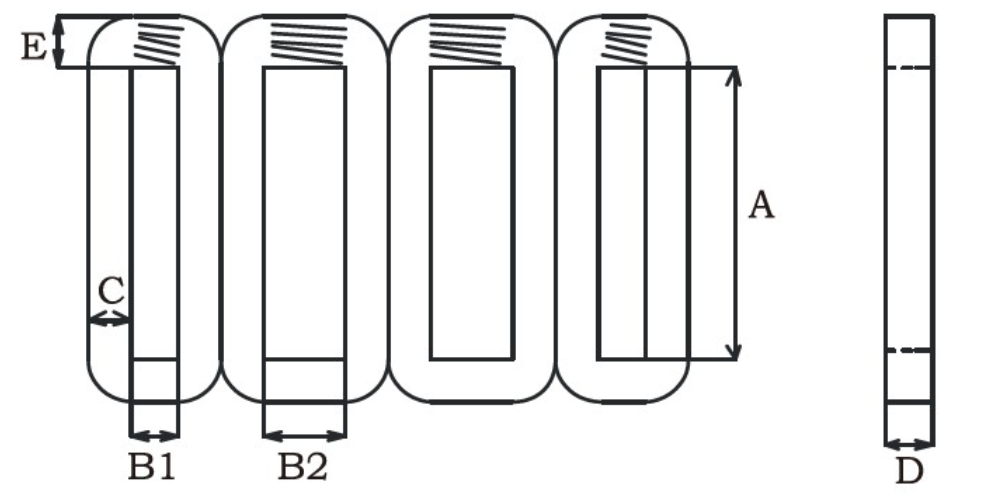

Three-phase five-leg amorphous iron core Dy suitable for the production of coupling group (e.g. Dyn11) transformer. Market sized to retain a conventional physical size amorphous iron core, the assembly to meet the customer prior art amorphous transformer, the device and capacity requirements. joint design using more advanced core distributed stacked structure.

► Advantages ( Amorphous distribution transformer core ) :

      ● Low core loss -- reduce the temperature rise of the transformer, the transformer improve efficiency

      ● Excellent temperature stability -- long-term work at temperatures up to -45 ℃ ~ 130 ℃

► Applications ( Amorphous distribution transformer core ) :

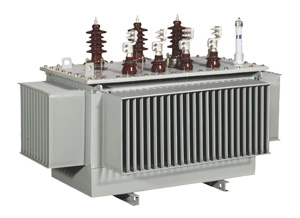

Western countries and Southeast Asia, North and South America region, the extensive use of amorphous alloy single pole-mounted transformers. In the power distribution network allocation, single pole-mounted transformers amorphous alloy distribution transformers have a great advantage, it is possible to reduce the length of the low-voltage distribution line port uniform, reduced line losses, power quality provided for rural power grid , remote mountainous areas, scattered villages, agricultural production, lighting and electricity power, can also be used for railways, urban energy-saving pole-mounted power distribution lines. Triple or single-phase operation may be a single complementary set of operating.

► Application direction ( Amorphous distribution transformer core ) :

      ● Rural power distribution network over the power distribution device

      ● Commercial centers

      ● Subways

      ● Railway stations

      ● Industrial and mining enterprises and power plants

► Specification ( Amorphous distribution transformer core ) :

           WTR10-18.8-35.5

           ● Ribbon width -- R = 142mm , S = 170mm , T = 213mm

           ● 10 -- Transformer capacity

           ● 18.8 -- Core weight

           ● 35.5 -- Core leg building
