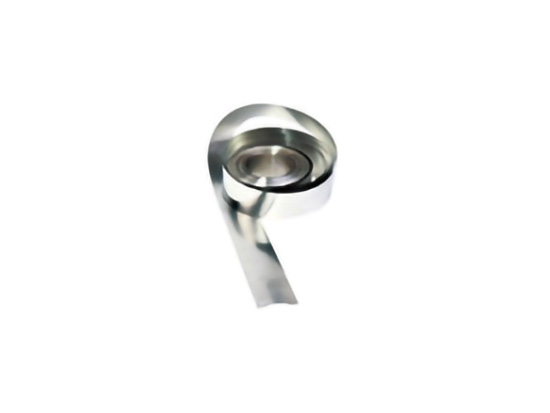

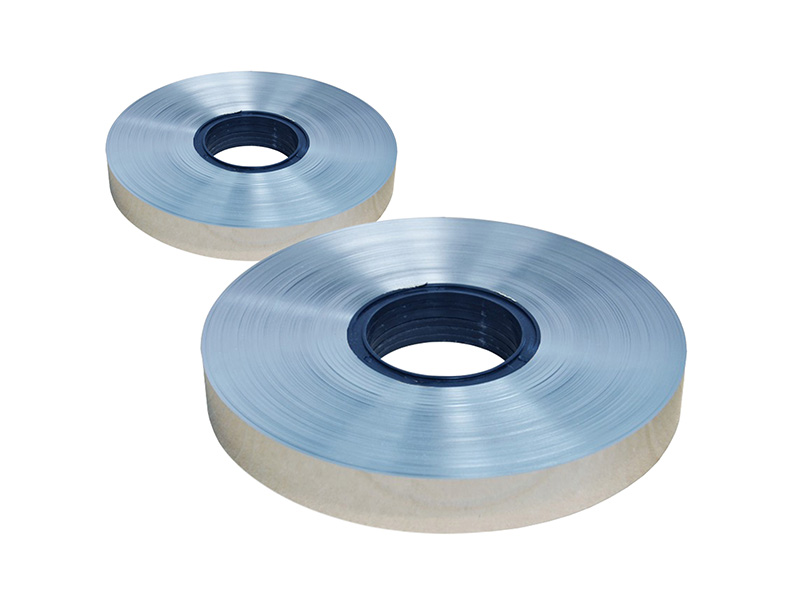

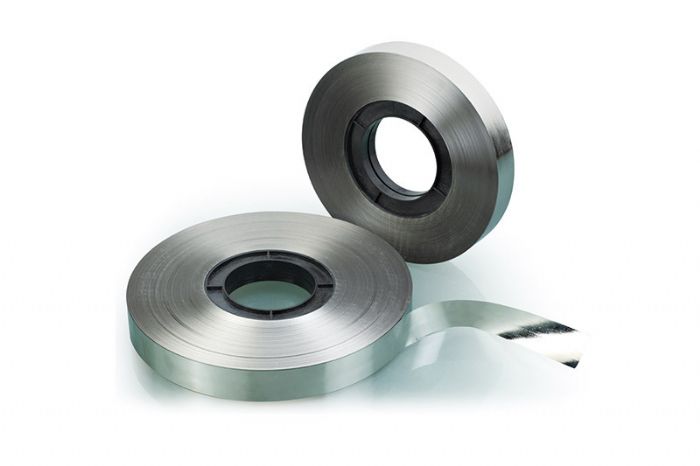

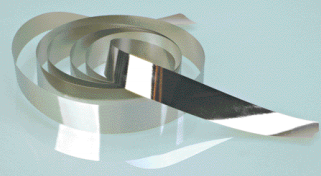

► Features ( Nanocrystalline ribbon ) :

Fe-based nanocrystalline alloys consisting of iron, silicon, boron, niobium, copper and other components. Cu and Nb containing iron-based amorphous alloy annealing above the crystallization temperature, will form a very fine grain structure, grain size 10-20 nm only, this amorphous alloy crystallization annealing specially formed the crystalline material is referred nanocrystalline alloy.

Nanocrystalline Materials having excellent characteristics of high saturation magnetic flux density, high permeability, low coercivity, low loss and good stability, high strength and toughness and wear and corrosion and the like, as having the best performance at the price of the metal soft magnetic material nanocrystalline alloy material ratio, can replace silicon steel, ferrite and permalloy an ideal material for high-frequency transformers, transformers, inductance components.

► Advantages ( Nanocrystalline ribbon ) :

      ● High Bs -- effectively reduce the volume of the device

      ● High μ -- improved efficiency of device

      ● Low core loss -- reduce the temperature rise of device

      ● Low magnetostriction coefficient -- Low noise

      ● Excellent temperature stability - long-term work at temperatures up to -55 ℃ ~ 130 ℃

► Performance ( Nanocrystalline ribbon ) :

► Application ( Nanocrystalline ribbon ) :

Fe-based nanocrystalline alloys consisting of iron, silicon, boron, niobium, copper and other components. Cu and Nb containing iron-based amorphous alloy annealing above the crystallization temperature, will form a very fine grain structure, grain size 10-20 nm only, this amorphous alloy crystallization annealing specially formed the crystalline material is referred nanocrystalline alloy.

Nanocrystalline Materials having excellent characteristics of high saturation magnetic flux density, high permeability, low coercivity, low loss and good stability, high strength and toughness and wear and corrosion and the like, as having the best performance at the price of the metal soft magnetic material nanocrystalline alloy material ratio, can replace silicon steel, ferrite and permalloy an ideal material for high-frequency transformers, transformers, inductance components.

► Application direction ( Nanocrystalline ribbon ) :

      ● EMC common mode，normal mode filter chokes                                  ● Different accuracy CT/VT cores

      ● Mag-amp and pulse killer cores                                                              ● High frequency transformer core

      ● Current transformer core                                                                         ● Cores for main transformer of switch power supply and control transformer

► Specification ( Nanocrystalline ribbon ) :

Code Introduction:         WT                    RB                         107                     0030              30

                              Wenergy Tech      Ribbon     Nano-crystalline material      Width       Thickness

 Note: 1, Thickness±3μm; Max width 30mm

          2, Other specification according customer’s demand
