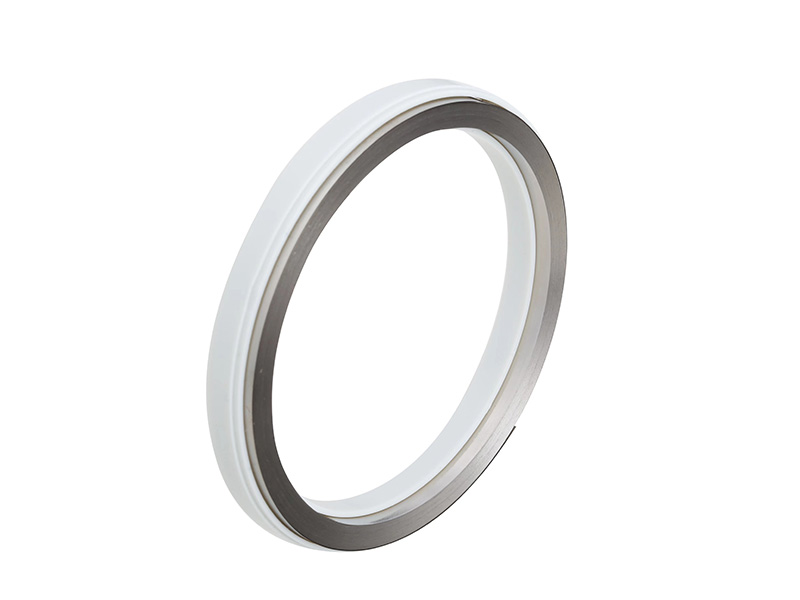

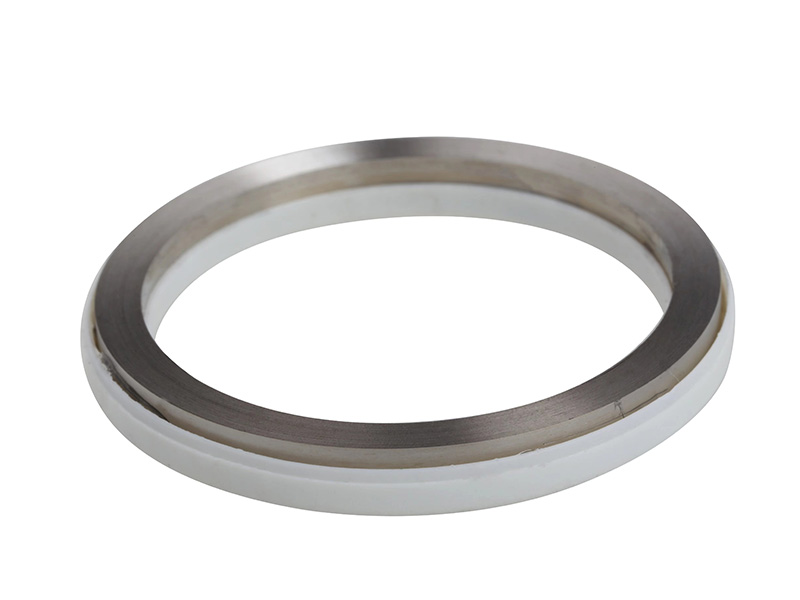

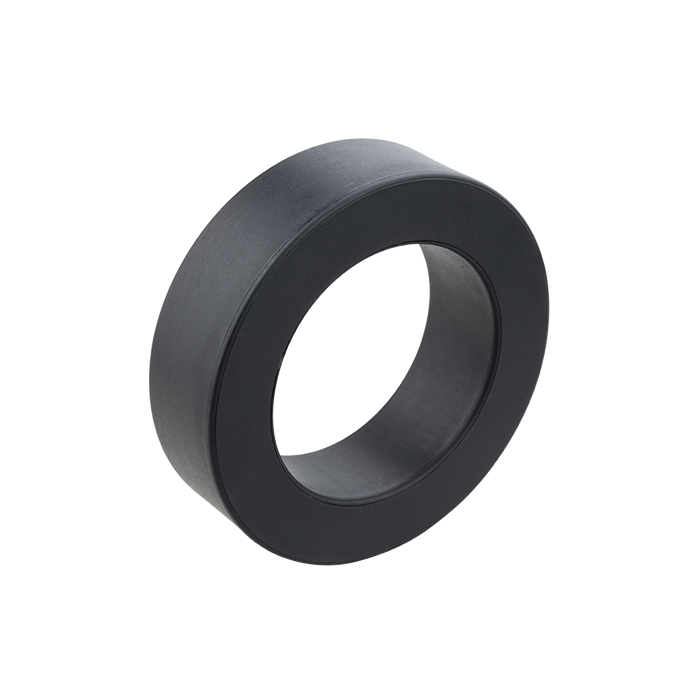

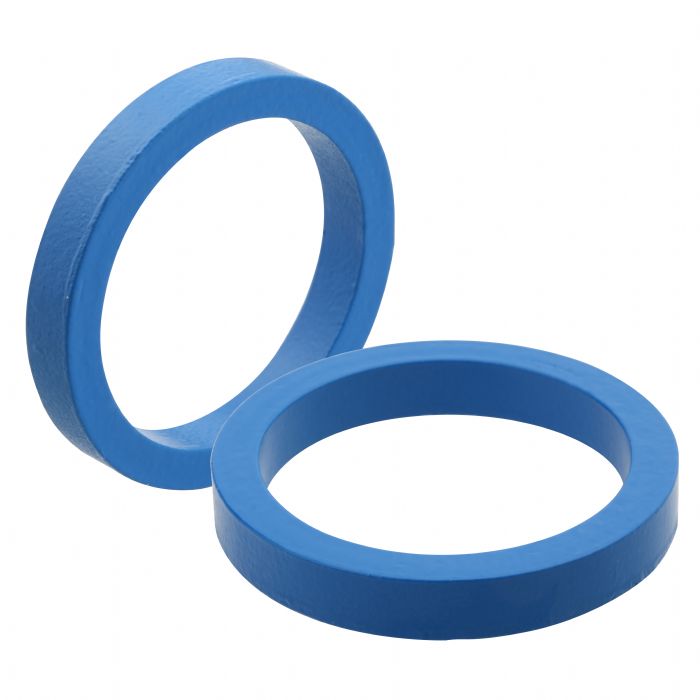

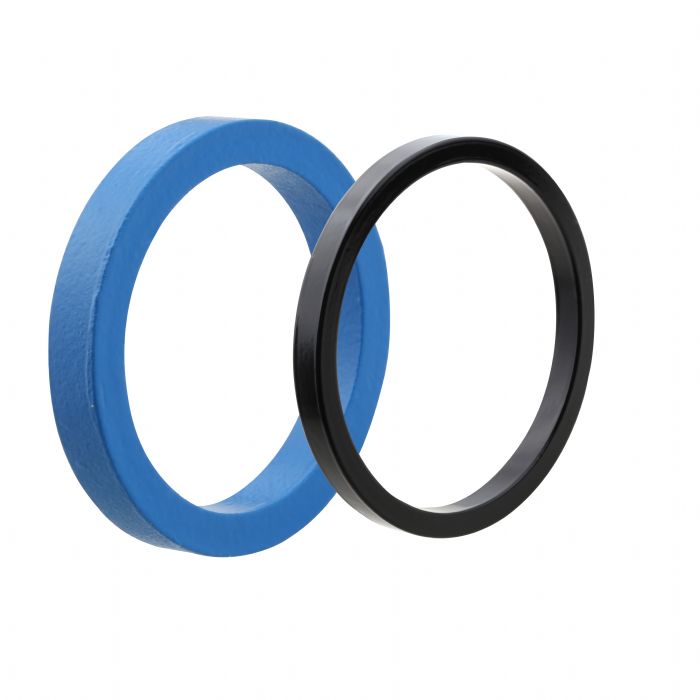

► Features ( Current transformer core ) :

The better the magnetic properties of the transformer core, the measurement error is smaller, the higher the accuracy. Require low ampere turns ratio small, cold rolled silicon steel reach the measurement accuracy, the permalloy core due to low saturation magnetic flux density and high cost because of the use of very constrained.

Nano-crystalline cores are getting wider usage for the 0.2，0.2s, 0.1 accuracy grade precious current transformers because of its high permeability, high magnetization and lower cosl in Ihc field of power supply systems, power energy measurement and controlling systems, dynamical system, relay protection, etc.

► Advantages ( Current transformer core ) :

● High permeability -- Increase CT’s accuracy level

● High magnetization -- Decrease CT meters security factor

● Excellent cost performance -- Lighter weight , smaller volume

● Good temperature stability -- Keep stable from -55℃ to 130℃ for long time

► Performance ( Current transformer core ) :

Item	Performance	Item	Performance
Saturation induction Bs (T)	1.25	Saturation magnetostriction λs	2.0×10^-6
Curie temperature Tc (℃)	570	Density ρ (g/cm³)	7.2
Crystalline temperature Tx (℃)	500	Resistance ratio σ (μΩ.cm)	130
Hardness Hv	880	Thickness (μm)	28-35
Initial permeability μ0	12×10⁴	Stacking factor	≥ 0.75

► Application ( Current transformer core ) :

The better the magnetic properties of the transformer core, the measurement error is smaller, the higher the accuracy. Require low ampere turns ratio small, cold rolled silicon steel reach the measurement accuracy, the permalloy core due to low saturation magnetic flux density and high cost because of the use of very constrained.

Nano-crystalline cores are getting wider usage for the 0.2，0.2s, 0.1 accuracy grade precious current transformers because of its high permeability, high magnetization and lower cosl in Ihc field of power supply systems, power energy measurement and controlling systems, dynamical system, relay protection, etc.

► Application direction ( Current transformer core ) :

● Leakage protection switch ● Precision power meter

● Electronic watt hour meter ● Current control in industrial automation

● Current overload protection in mechanical control

► Application ( Current transformer core ) :

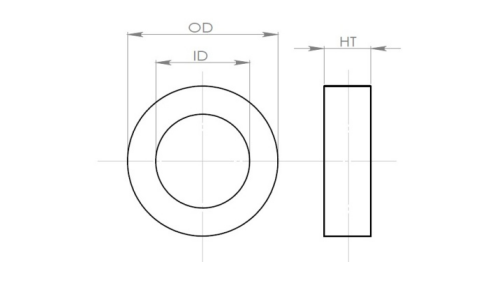

	• OD -- outer diameter
	• ID -- inner diameter
	• HT -- height

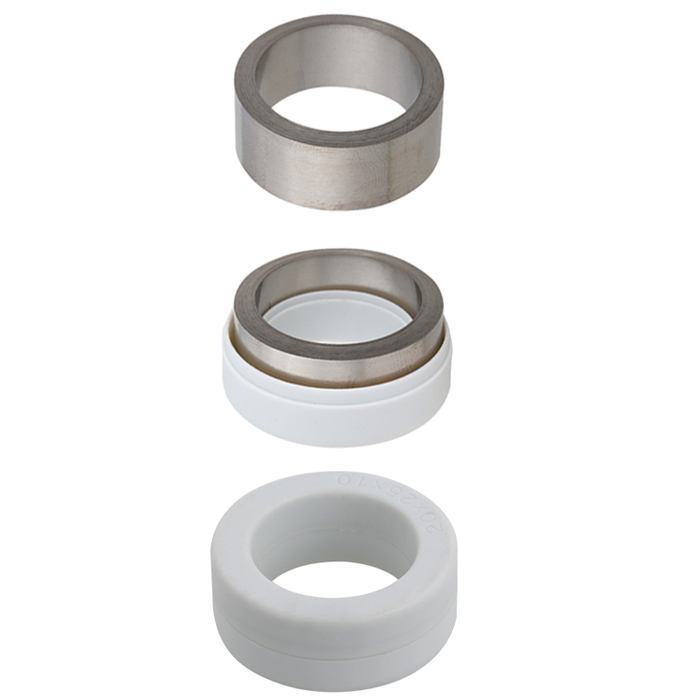

PN.	Bare core size ( mm )			Finished core size ( mm )
PN.	OD	ID	HT	OD	ID	HT
WTNR-211610-P-01	21	16	10	23.8	14.5	12.5
WTNR-201410-P-01	20	14	10	23.5	12.5	12.5
WTNR261910-P-01	26	19	10	29	16.5	12.5
WTNR-403010-P-01	40	30	10	43	27.5	12.5
WTNR-403015-P-01	40	30	15	43	27.5	17.5
WTNR-833840-P-01	83	38	40	88	34	45
WTNR-704230-P-01	70	42	30	75	38	35
WTNR-684530-P-01	68	45	30	73	41	35
WTNR-806030-P-01	80	60	30	85	56	35
WTNR-704025-P-01	70	40	25	75	36	30
WTNR-855030-P-01	85	50	30	90	46	35
WTNR-805035-P-01	80	50	35	85	46	40
WTNR-866040-P-01	86	60	40	91	56	45
WTNR-885040-P-01	88	50	40	93	46	45
WTNR-805030-P-01	80	50	30	85	46	35
WTNR-907330-P-01	90	73	30	95	69	35
WTNR-1007520-P-01	100	75	20	105	71	25
WTNR-1109045-P-01	110	90	45	115	86	50
WTNR-1208520-P-01	120	85	20	125	81	25
WTNR-1209515-P-01	120	95	15	125	91	20

Note: Welcome other specification concerning customer’s demand
