Nanocrystalline common mode is more and more applied to on-board charger of the battery electric vehicle and Hybrid Electric Vehicle. Even under temperature as high as 180℃ , Nanocrystalline cores can work safely over long term; restricted by the temperature limit of around 100℃, ferrite cores can’t meet the requirement.

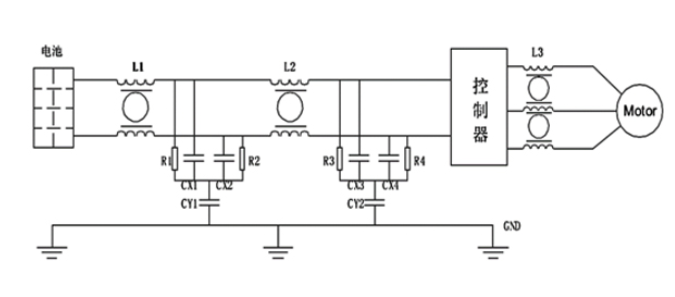

A. Main Parts -- motor/oil pump/air pump/water pump/air condition
1. Application：
● Common mode choke cores for EMC solutions
● Sensors for current detection

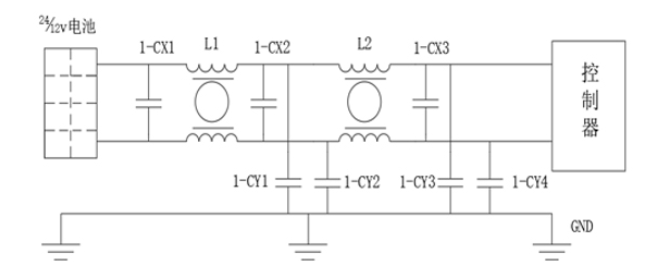

● Common mode choke for EMC solution of low voltage power supply

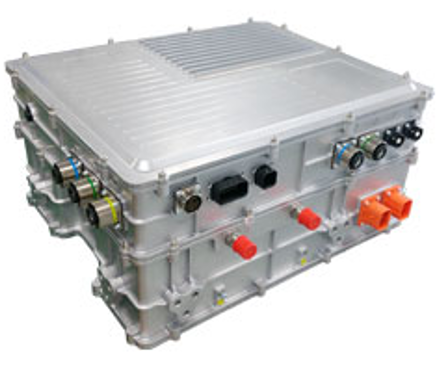

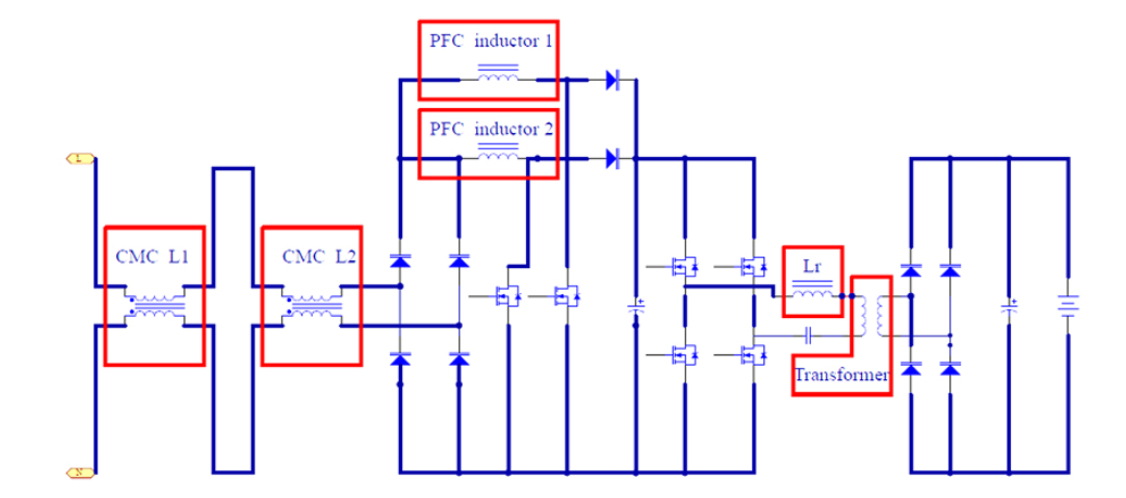

B. Main parts -- OBC
1. Application：
● Common mode choke for EMC filter circuit
● Drive transformer for switch tube
● LLC resonant inductor in resonant transform
● PFC inductor
● Transformer
车载充电机是一种慢充设备，通过市电给动力电池充电

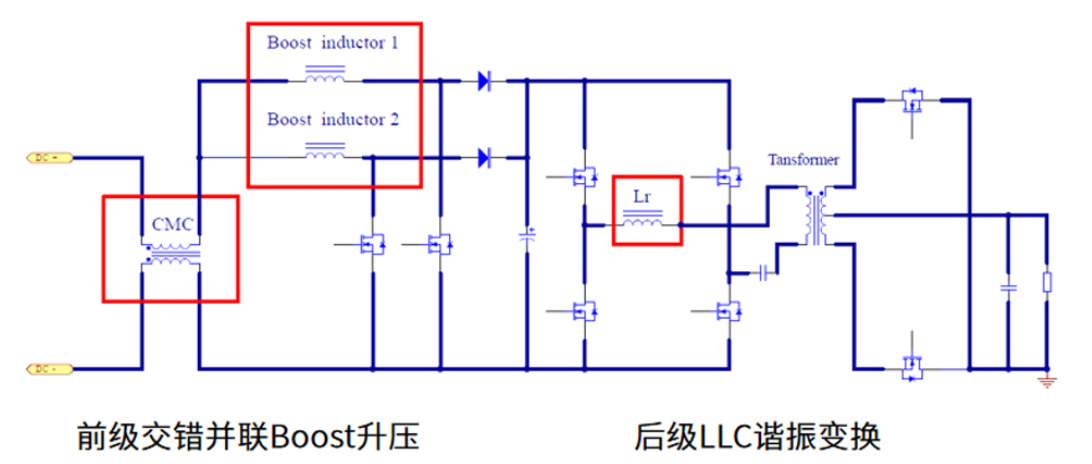

C. Main parts -- DC-DC
1. Application：
● CMC , DMC ( Common mode choke , Different mode choke)
● Boost inductor
● LLC resonant inductor in resonant transform
● Transformer
利用高压电池包电量对12V/24V蓄电池充电的直流变换模块。
|
